Reversing camera with screen for vehicle

View larger

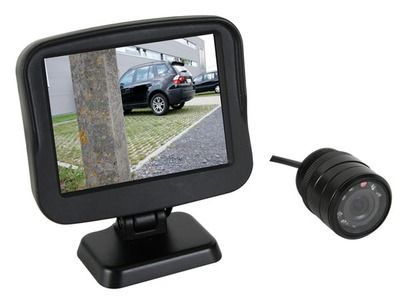

Back-up camera with display screen for vehicle

Reference: CPREV1

Condition: New product

Reversing camera with screen to vehicle recessed or seems good to you.

More details

Average votes for this product

Average : 0.0 / 5
Based on 0 customers advices.

More info

Kit, back-up camera with the color screen for car

Display high-resolution TFT 3.5' compact and in color
LED camera Infrared
Set comes with necessary mounting and meadows to ask
Fixing nuts for the camera
Saw-bell provided for mounting in the bumper (or elsewhere)

Specifications
System: NTSC
Monitor dimensions: 3.5' TFT display pixels: 480(H) x 320(V)
Video inputs: 1
camera:
Sensor: 1/4' colour CMOS
Synchronization system: internal
Output video: mirror image
Horizontal resolution: 420 TV lines
Number of IR LEDs: 8
Minimum illumination .: 0 Lux when the infraouge is enabled
View Angle: 120°
S/n ratio: >= 48dB
Input video Signal: composite video signal 1.0 Vpp at 75 ohm
Connections A/V input: RCA connector
Power supply: DC 12V +-1.5 V
Power consumption max.: 300mA
Wiring: 1x display (+-2m), 1x power supply (+-1.5 m), 1x video (+-6m), 1x camera (+-1.5 m)
Temperature range: -20°C ~ +60°C
Dimensions:
Monitor: 93 x 102 x 45mm
Camera: 31 x 31 x 35mm
Weight:
monitor : +-120g
camera: +-60g
