Rear view mirror video reversing camera

View larger

Display all pictures

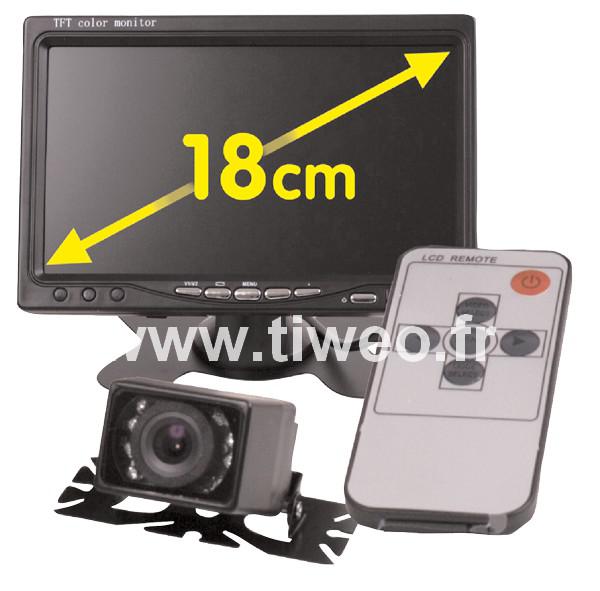

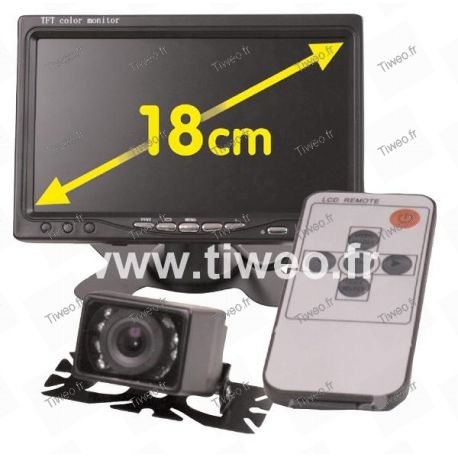

Rear view mirror video camera

Reference: RVRCG

Condition: New product

Back-up camera with a giant screen (18cm) for 4x4, camping-cars, caravans, vans and trucks.

This product is no longer in stock

Notify me when available

Average votes for this product

Average : 0.0 / 5
Based on 0 customers advices.

Print

More info

Big screen 18cm
Possibility to connect 2 cameras (optional)
Ready to mount with 5m cable

Content

1 camera outdoor
1 monitor 18 cm
1 bracket for fixing the monitor
1 mounting bracket of the camera
1 ac power cord of the camera (1 meter)
1 power cord power supply monitor (1.8-meter)
1 connection cable, video (5 meters)
1 remote control
1 manual

Characteristic techniques of the monitor

TFT-LCD color 7” (18cm) 16:9 format
Resolution : 480 x 234 pixels
System : PAL / NTSC (auto)
Fixation by bracket, adjustable without drilling
Inputs : AV1/ AV2 with Cinch connectors (possibility to connect 2 cameras)
Outside Dimensions : 175 x 115 x 22 mm
Monitor settings : on / Off, video Select AV , Access Menu : language selection, brightness, contrast, color Rotation (4 no) & inversion (mirror effect) of the image
Direct power supply 12V (standard 13.8 V)

Technical characteristics of the camera

Sensor C-MOS / Sensor 1/3
300 000 pixels
Optical angle : 3.8 mm
Diaf. 1/50 ≈ 1/10000 sec
Definition : 380 lines
PAL 512 (H) x 582 (V) 50 Hz
Sensitivity : 3 Lux ir off
(0 Lux IR On)
Power Leds Infrared : ≈ 8 meters (8 Leds)
White Balance : auto
Video output : composite 1V / Vpp75 Ohms
Fixation by bracket, adjustable. (base : 70 x 25 mm)
Overall Dimensions (without bracket) : 40 x 35 x 25 mm
Direct power supply 12V (standard 13.8 V)

1 year warranty
