Pack, air conditioning, special garage or business

Complete Pack to recharge all of the vehicles

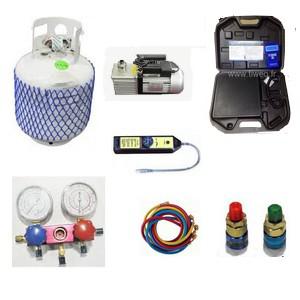

Contains :

• 1 vacuum Pump for air conditioner single stage

- Technical characteristics.
- The # of floors : One
- Power supply : 220V - 50 Hz.
- Fittings : 1/4 SAE
- Speed : 1 CFM , 1.7 m3/h.
- Final vacuum : 10 Pa / 0,1 Millibar

- Fitting M16 x 1.5 mm

- Max power. : 1/8 HP, About 90 W.
-Dimensions : 247 x 110 x 207 mm.
- Weight : 7 kg.
- Warranty : 1 year

Using video to recharge an air conditioning

Recharge clim (single)

Draw the vacuum and charge air conditioning car

• Manifold Pro for air conditioning

*Manifold Pro 2 gauges High and Low Pressure
Comes with 3 hoses, yellow red blue
1/4 female + 2 quick couplings
length of flexible 91cm
Operating pressure of 500PSI
Burst pressure 2500PSI

*depending on availability, this item will be delivered in version 2 or 3 pressure gauges for the same price

• Balance professional to the weighed gas air conditioning

**Precision Balance for gas air-conditioning 70KG Max

** or more, depending on the market and for the same price

• Leak detector for air conditioning

Net weight: 145g.
Color: yellow + black + red
temperature operation: 0C~52C (32F~126F).
Maximum sensitivity: 6 gr/yr for all refrigerants halogenes.
battery life: Approximately 50 hours for normal use.
Response time: Instantaneous.
Probe length: 20cm.
Dimensions: 22.9 cm x 6.5 cm x 6.5 cm.
Warm-up time: Approximately 6 seconds.
Time Reset : 2~10 seconds
Detector of refrigerant gas halogene CFC HFC.

Application:

This detector can be used to detect leaks in the systems of air conditioning. It will answer all the gas halogenes. This includes, but is not limited to :(CFCs: R12, R11, R500, R503, etc; HCFCs: R22, R123, R124, R502, etc; HFCs: R134a, R404a, R125 etc, AZ-50, HP62, MP39, etc).
Detects gas leak Ethylene Oxide in the equipment sterile hospitals.
Detects most gases that contain chlorine, Fluorine and Bromine

• Cooling gas Duracool 12A 9 Kg

Deepcool 12a replaces conveniently the gas R12 and R134a that you can find in the cooling circuits of motor vehicles (fluid substitution). Deepcool 12a is compatible with the two oils of conditioning ( mineral and synthetic ) .

In addition , Deepcool 12a has larger molecules than the gases of origin, and can save 30 to 40% of gas on the full charge of the refrigeration circuit. Each bottle 9kgs is equal to approximately 22.6 kg of HFC-R134a or 25.8 kg of CFC-R12.

The refrigerant gas Deepcool work at lower pressures and allow energy savings of up to 40% compared to CFCS, HCFCS and HFCS.

Attention: It is impossible for us to deliver this product in the Dom-Tom. In effect, the airlines refuse this product for security reasons

Refrigerants DURACOOL® do not require amenities to be purchased, or installed in a circuit empty CFC, HFC or HCFC. Any intervention on a circuit containing more fluorine : CFC, HFC or HCFC requires the speaker to respect the laws in force (Decree of 4 July 2009).

Namely :

When placing your order, you will receive with your kit a (of the) label (s) affixed to your vehicle to indicate that it is equipped with the gas 12A

All such as R134a and the set of fluid refrigerant,

Ensure you at a charge to have proper ventilation.

Do not smoke while handling the product.

Protect you eyes, face and skin of any spills.

For your information, here are the technical data auto ignition of the various refrigerating fluids (readily available and indisputable on the sites of the different manufacturers).

- R134a (gas home) HFC 743°C F: fluoride, " thermal decomposition: hydrofluoric acid ",
- HFO 1234yf HFC (new gas approved which replaces the R134a) 405°C F: fluoride, " thermal decomposition: hydrofluoric acid ",
- HC 12a (our gas) HC 891°C no fluoride, so no hydrofluoric acid is possible.

The R12a is certainly a replacement benefit of the R-12 and R-134a in
already existing systems. It can also be used in circuits which are new.

What the law says

Even if our gas 12a is 100% compatible with the R134a and oil existing, the Law says: The mixture of refrigerants is illegal

Recover all the refrigerant existing in an appropriate container and approved, and mark it correctly, because the act prohibits The discharge of refrigerants into the atmosphere.

*photo not contractual
