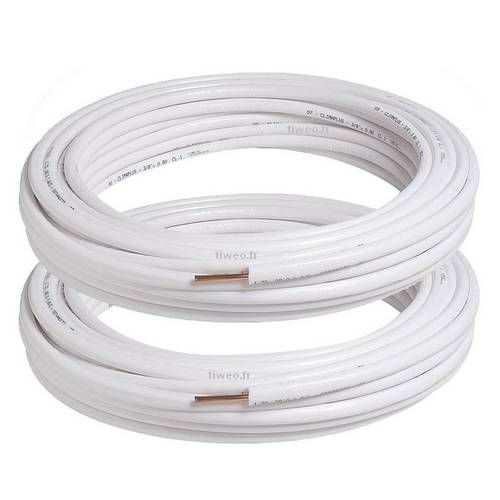

Link refrigeration 1/4 3/8

Link refrigeration for air conditioner, width of your choice !

Tested is used on the installation of our local !!

FEATURES:

Copper pipe ACR annealed (R220), mechanical properties, dimensions, tolerances in conformity to standard UNI EN 12735-1.

For a use with the refrigerants R407C and R410A, interior cleaning and drying with a inert gas with a total residual max 0,034 g / m2 and ends sealed according to the standard ASTM B280.

Coating
envelope insulation physically cross-linked closed cells in foam polyethylene with the values of the following techniques:
• thermal conductivity at 40 ° C λ ≤ 0.040 W / m * K
• resistance factor to water vapor diffusion
( anti-condensation) μ ≥ 10000
• class of reaction to fire 1
• operating temperature -80 ° / + 120 ° C
• CFC-free

Film polyethylene extruded outside (LDPE) white, with self-timer flame, ensures a high degree of condensation, a excellent resistance to the abrasion and tear.
